Heavy Hammer Crusher

What is a PCZ heavy hammer crusher?

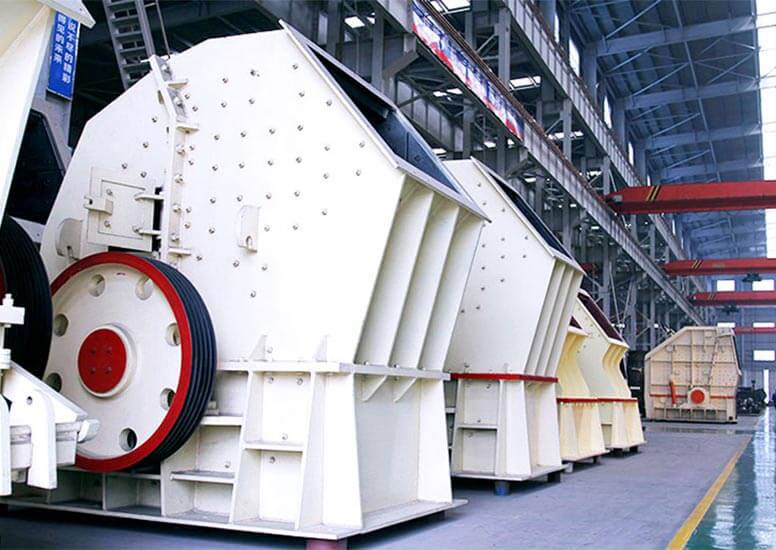

HXJQ PCZ heavy-duty hammer crusher

HXJQ PCZ heavy-duty hammer crusher

With the features of high efficiency and energy saving, PCZ heavy-duty hammer crusher adopts the mature technologies, which can achieve once-molding crushing effect. It combines the advantages of jaw crusher, hammer crusher and impact crusher, and becomes one of the most popular hammer crushing machines.

PCZ heavy hammer crusher applications

After optimization and redesign, PCZ heavy hammer crusher becomes the new crushing machine which can crush large and small materials simultaneously.

Wide range of PCZ hammer crusher

Wide range of PCZ hammer crusher

It mainly applied in the industries of mines, metallurgy, building materials, road construction, railway building, water conservancy, cement, sand, coal, chemical engineering, electricity, and compound fertilizer.

Heavy-duty hammer crusher can be used in the dry crushing process and wet crushing process. During the wet crushing process, materials can be mixed with water to continue crushing operation, and the water content is required to be no more than 15%.

Heavy-duty hammer crusher is usually used to crush the ores of compressive strength no more than 200MPa, or calcium content no less than 40%, such as limestone, coal, salt, gypsum, bricks, tiles, gangue, etc.

Advantages of heavy-duty hammer crushers

Various advantages of heavy-duty hammer crusher

Various advantages of heavy-duty hammer crusher

The feed size is large and the output is high

The feeding size of the heavy hammer crusher can reach 750 mm, and the output of single hammer crusher can reach 3000 tons.

The design of the crushing cavity conforms to the dynamic principle. The unique structure without sieve plate increases the throughput of the material, which can crush the wet material and solve the traditional hammer problem of easy to block and low output.

Low energy consumption and investment

The PCZ type heavy hammer crusher has a large feeding size, small discharge particle size, and a once-molding system, which completely realizes a low-cost operation.

Environmental protection and less pollution

It can crush the wet material, that is, when the wet material is crushed, water can be added to reduce dust pollution and protect workers' health and environment.

Excellent finished grain size

The material can be adjusted according to the demand which can meet various specifications.

Advanced parts and wear resistance

The PCZ type heavy hammer crusher produced by our company adopts the most sophisticated fittings, especially the selection of wear-resistant parts, and the hammer head is the most advanced technology and the most wear-resistant metal in China.

working principle

The main working part of the PCZ type heavy hammer crusher is a rotor with a hammer (also called a hammerhead). The rotor consists of a main shaft, a disc, a pin and a hammer. The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feeding port, and crushed by the hammer.

In the lower part of the rotor, a sieve plate is arranged, and the size of the crushed material smaller than the mesh size is discharged through the sieve plate, and the material larger than the mesh size is remained on the sieve plate and continues to be struck and ground by the hammer, and discharged through the sieve plate.

Heavy hammer crusher structure

Heavy-duty hammer crusher structure

Heavy-duty hammer crusher structure

Customer case

HXJQ heavy hammer mill in Indonesia

In August, 2019, our website has received a message from Husan, Indonesia. He said:" I want a calcium stone crushing line of capacity 600 tons per hour and the output size is in the range between 3 to 30mm."

After receiving the message, our engineer got in touch with Husan immediately. Our heavy hammer crusher was recommended after confirming his specific requirements. A week later, Husan visited our factory with his material for a trial, and finally we signed an agreement.

The details of calcium stone crushing line:

Capacity: 600T/H (1m3=1.6T)

Raw material: calcium stone

Hardness: soft

Feeding size: ≦1200mm

Crushing line: fixed type

Configuration of finished products: 0-3 mm, 3-5 mm, 5-10 mm, 10-20 mm, 20-30 mm

Investment: $200,000

Customer feedback:

Customer feedback

Customer feedback of hammer crusher

Why choose HXJQ heavy-duty hammer crusher

As the leader of China's mining machinery, HXJQ Mining Machinery has always been adhering to the tenet of "serving customers at all times" and moving forward on the development path of mining machinery.

HXJQ--heavy-duty hammer crusher factory

HXJQ--heavy-duty hammer crusher factory

Based on the hammer crusher, HXJQ engineer designed the HXJQ Heavy hammer crusher to meet the higher demands of customers. The heavy hammer crusher is available in a variety of models to meet your production and product specifications, and HXJQ provides 24-hour after-sales support to ensure efficient and stable operation.
